前言
上半年的大半年时间都在用FGUI，最近又用回了UGUI，发现FGUI的一些工具还是很高效的，比如对齐工具，想着说移植到UGUI里面去，上网搜了一圈还真有，原理并不复杂，就是进行一些数学计算出最终的位置。
不过也没有完全适合项目需求，针对原项目基础上添加了三个功能，下面介绍一下。
一、撤销功能
原项目的工具在修改后，习惯性就按下Ctrl+Z，发现并不能撤销原来的操作，查询了Unity的API后，发现有个Undo的类，可以实现撤销功能，有很多方法，主要用到了RecordObject，代码如下
private static void SetTranPos(Transform tran, Vector3 pos)
{
Undo.RecordObject(tran, "modify posstion");
tran.position = pos;
}
二、Selection.GameObjects不是按选择顺序的
API中的Selection.GameObjects用于获取当前选中的物件，数组的顺序和我选择的顺序无关，所以不能实现灵活的对齐，查询网上文章可以用Selection.Objects替代，里面的第一个元素就是Ctrl选中的第一个元素，以此类推，代码如下
//按选中顺序获取GameObjects
private static GameObject[] GetOrderedSelctionObjs()
{
return Selection.objects.OfType<GameObject>().ToArray();
}
三、添加对父节点对齐
功能就是和标题一样，原项目是没有的，代码如下
//如果只选中一个，对父节点对齐
if (rects.Count == 1)
{
if (rects[0].parent != null && rects[0].parent.GetComponent<RectTransform>() != null)
{
rects.Insert(0, rects[0].parent.GetComponent<RectTransform>());
}
}

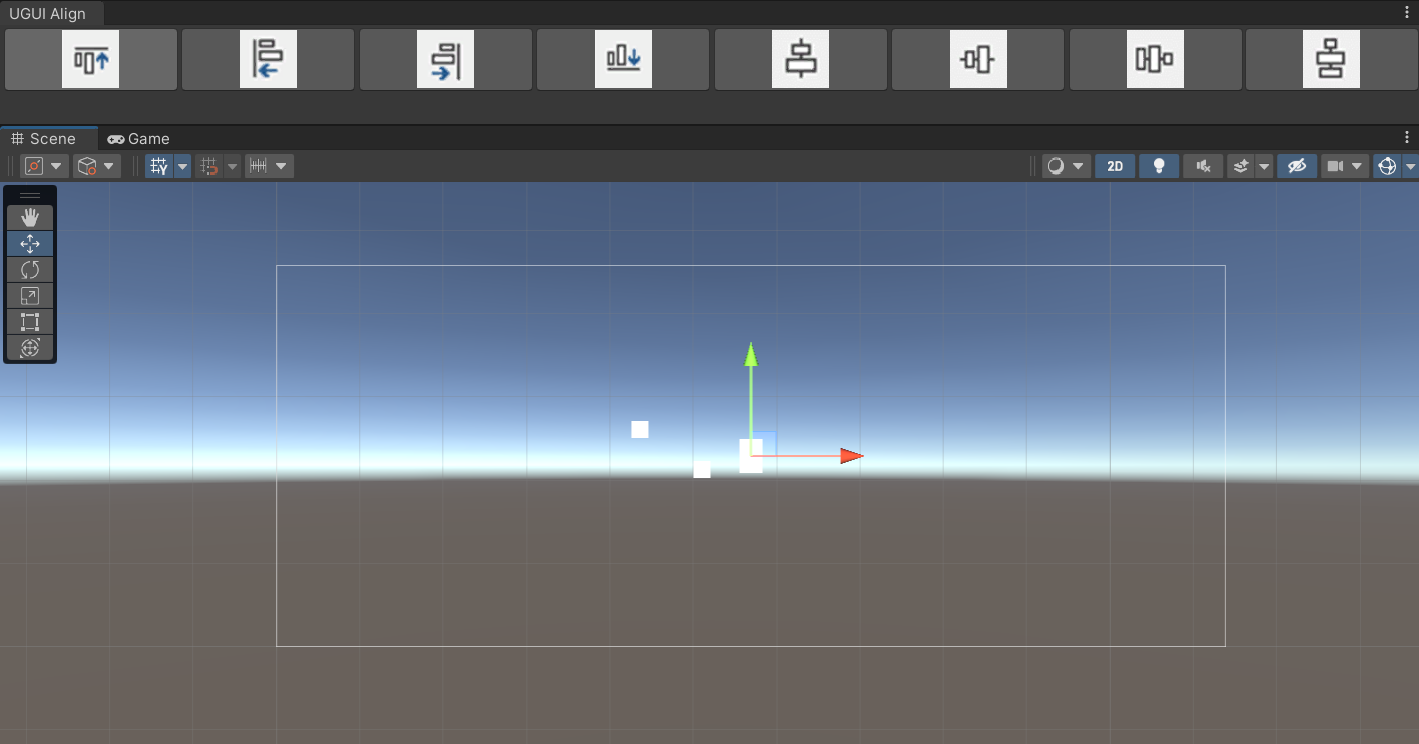

四、代码
UGUIAlign
using System.Collections.Generic;
using System.Linq;
using UnityEditor;
using UnityEngine;
public enum AlignType
{
Top = 1,
Left = 2,
Right = 3,
Bottom = 4,
HorizontalCenter = 5, //水平居中
VerticalCenter = 6, //垂直居中
Horizontal = 7, //横向分布
Vertical = 8, //纵向分布
}
public class UGUIAlign : Editor
{
[MenuItem("GameObject/UI/Align/Left 【左对齐】")]
static void AlignLeft()
{
Align(AlignType.Left);
}
[MenuItem("GameObject/UI/Align/HorizontalCenter 【水平居中】")]
static void AlignHorizontalCenter()
{
Align(AlignType.HorizontalCenter);
}
[MenuItem("GameObject/UI/Align/Right 【右对齐】")]
static void AlignRight()
{
Align(AlignType.Right);
}
[MenuItem("GameObject/UI/Align/Top 【顶端对齐】")]
static void AlignTop()
{
Align(AlignType.Top);
}
[MenuItem("GameObject/UI/Align/VerticalCenter 【垂直居中】")]
static void AlignVerticalCenter()
{
Align(AlignType.VerticalCenter);
}
[MenuItem("GameObject/UI/Align/Bottom 【底端对齐】")]
static void AlignBottom()
{
Align(AlignType.Bottom);
}
[MenuItem("GameObject/UI/Align/Horizontal 【横向分布】")]
static void AlignHorizontal()
{
Align(AlignType.Horizontal);
}
[MenuItem("GameObject/UI/Align/Vertical 【纵向分布】")]
static void AlignVertical()
{
Align(AlignType.Vertical);
}
public static void Align(AlignType type)
{
List<RectTransform> rects = new List<RectTransform>();
GameObject[] objects = GetOrderedSelctionObjs();
if (objects != null && objects.Length > 0)
{
for (int i = 0; i < objects.Length; i++)
{
RectTransform rect = objects[i].GetComponent<RectTransform>();
if (rect != null)
rects.Add(rect);
}
}
//如果只选中一个，对父节点对齐
if (rects.Count == 1)
{
if (rects[0].parent != null && rects[0].parent.GetComponent<RectTransform>() != null)
{
rects.Insert(0, rects[0].parent.GetComponent<RectTransform>());
}
}
if (rects.Count > 1)
{
Align(type, rects);
}
}
//按选中顺序获取GameObjects
private static GameObject[] GetOrderedSelctionObjs()
{
return Selection.objects.OfType<GameObject>().ToArray();
}
public static void Align(AlignType type, List<RectTransform> rects)
{
RectTransform tenplate = rects[0];
float w = tenplate.sizeDelta.x * tenplate.lossyScale.x;
float h = tenplate.sizeDelta.y * tenplate.lossyScale.y;
float x = tenplate.position.x - tenplate.pivot.x * w;
float y = tenplate.position.y - tenplate.pivot.y * h;
switch (type)
{
case AlignType.Top:
for (int i = 1; i < rects.Count; i++)
{
RectTransform trans = rects[i];
float th = trans.sizeDelta.y * trans.lossyScale.y;
Vector3 pos = trans.position;
pos.y = y + h - th + trans.pivot.y * th;
SetTranPos(trans, pos);
}
break;
case AlignType.Left:
for (int i = 1; i < rects.Count; i++)
{
RectTransform trans = rects[i];
float tw = trans.sizeDelta.x * trans.lossyScale.x;
Vector3 pos = trans.position;
pos.x = x + tw * trans.pivot.x;
SetTranPos(trans, pos);
}
break;
case AlignType.Right:
for (int i = 1; i < rects.Count; i++)
{
RectTransform trans = rects[i];
float tw = trans.sizeDelta.x * trans.lossyScale.x;
Vector3 pos = trans.position;
pos.x = x + w - tw + tw * trans.pivot.x;
SetTranPos(trans, pos);
}
break;
case AlignType.Bottom:
for (int i = 1; i < rects.Count; i++)
{
RectTransform trans = rects[i];
float th = trans.sizeDelta.y * trans.lossyScale.y;
Vector3 pos = trans.position;
pos.y = y + th * trans.pivot.y;
SetTranPos(trans, pos);
}
break;
case AlignType.HorizontalCenter:
for (int i = 1; i < rects.Count; i++)
{
RectTransform trans = rects[i];
float tw = trans.sizeDelta.x * trans.lossyScale.x;
Vector3 pos = trans.position;
pos.x = x + 0.5f * w - 0.5f * tw + tw * trans.pivot.x;
SetTranPos(trans, pos);
}
break;
case AlignType.VerticalCenter:
for (int i = 1; i < rects.Count; i++)
{
RectTransform trans = rects[i];
float th = trans.sizeDelta.y * trans.lossyScale.y;
Vector3 pos = trans.position;
pos.y = y + 0.5f * h - 0.5f * th + th * trans.pivot.y;
SetTranPos(trans, pos);
}
break;
case AlignType.Horizontal:
float minX = GetMinX(rects);
float maxX = GetMaxX(rects);
rects.Sort(SortListRectTransformByX);
float distance = (maxX - minX) / (rects.Count - 1);
for (int i = 1; i < rects.Count - 1; i++)
{
RectTransform trans = rects[i];
Vector3 pos = trans.position;
pos.x = minX + i * distance;
SetTranPos(trans, pos);
}
break;
case AlignType.Vertical:
float minY = GetMinY(rects);
float maxY = GetMaxY(rects);
rects.Sort(SortListRectTransformByY);
float distanceY = (maxY - minY) / (rects.Count - 1);
for (int i = 1; i < rects.Count - 1; i++)
{
RectTransform trans = rects[i];
Vector3 pos = trans.position;
pos.y = minY + i * distanceY;
SetTranPos(trans, pos);
}
break;
}
}
private static void SetTranPos(Transform tran, Vector3 pos)
{
Undo.RecordObject(tran, "modify posstion");
tran.position = pos;
}
private static int SortListRectTransformByX(RectTransform r1, RectTransform r2)
{
float w = r1.sizeDelta.x * r1.lossyScale.x;
float x1 = r1.position.x - r1.pivot.x * w;
w = r2.sizeDelta.x * r2.lossyScale.x;
float x2 = r2.position.x - r2.pivot.x * w;
if (x1 >= x2)
return 1;
else
return -1;
}
private static int SortListRectTransformByY(RectTransform r1, RectTransform r2)
{
float w = r1.sizeDelta.y * r1.lossyScale.y;
float y1 = r1.position.y - r1.pivot.y * w;
w = r2.sizeDelta.y * r2.lossyScale.y;
float y2 = r2.position.y - r2.pivot.y * w;
if (y1 >= y2)
return 1;
else
return -1;
}
private static float GetMinX(List<RectTransform> rects)
{
if (null == rects || rects.Count == 0)
return 0;
RectTransform tenplate = rects[0];
float minx = tenplate.position.x;
float tempX = 0;
for (int i = 1; i < rects.Count; i++)
{
tempX = rects[i].position.x;
if (tempX < minx)
minx = tempX;
}
return minx;
}
private static float GetMaxX(List<RectTransform> rects)
{
if (null == rects || rects.Count == 0)
return 0;
RectTransform tenplate = rects[0];
float maxX = tenplate.position.x;
float tempX = 0;
for (int i = 1; i < rects.Count; i++)
{
tempX = rects[i].position.x;
if (tempX > maxX)
maxX = tempX;
}
return maxX;
}
private static float GetMinY(List<RectTransform> rects)
{
if (null == rects || rects.Count == 0)
return 0;
RectTransform tenplate = rects[0];
float minY = tenplate.position.y;
float tempX = 0;
for (int i = 1; i < rects.Count; i++)
{
tempX = rects[i].position.y;
if (tempX < minY)
minY = tempX;
}
return minY;
}
private static float GetMaxY(List<RectTransform> rects)
{
if (null == rects || rects.Count == 0)
return 0;
RectTransform tenplate = rects[0];
float maxY = tenplate.position.y;
float tempX = 0;
for (int i = 1; i < rects.Count; i++)
{
tempX = rects[i].position.y;
if (tempX > maxY)
maxY = tempX;
}
return maxY;
}
}
五、代码下载
https://github.com/dandkong/UGUIAlign
